Cad

Geometric geometric_forms

Geometric Forms

This module contains functions to generate and manipulate basic geometric forms using PyVista. These forms can be used for visualization and analysis in various engineering and physics simulations. The functions in this module provide simple representations of common mechanical components such as control arms, tubes, cylinders, spheres, springs, and other structures.

Each function creates geometric shapes by connecting specified points in 3D space, allowing users to model complex systems efficiently. These forms can be used to build assemblies or test various configurations, making them useful for mechanical simulations, 3D modeling, and CAD systems.

The generated shapes are returned as pv.MultiBlock objects, which allow for efficient handling and visualization of multiple geometric forms in a single structure.

These functions provide an easy way to generate basic geometric components for more complex 3D models.

pymycar.Cad.geometric_forms.control_arm(point_a, point_b, common_point, radius=10, resolution=100, n_sides=10)

Generate a control arm (V-shape structure).

Parameters:

point_aarray-like

Coordinates of the first base point of the control arm.

point_barray-like

Coordinates of the second base point of the control arm.

common_pointarray-like

Coordinates of the common apex point of the control arm.

radiusfloat, optional

Radius of the Tubes, by default 10.

resolutionint, optional

Resolution of the Tubes, by default 100.

n_sidesint, optional

Number of sides of the Tubes, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing two Tubes representing the control arm.

Notes

The control arm is formed by two Tubes connecting the base points to the common apex point.

Examples

Create a control arm mapping between three coordinates and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad import control_arm
>>> a = control_arm(np.array([586.7, -314.5, 199.9]), np.array([930.7, -230.2, 244.2]), np.array([953.0, -474.2, 272.2]), radius=10, resolution=100, n_sides=10)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(a, color='red', name="Control Arm")
>>> plotter.add_title("Control Arm")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.cylinder_from_two_points(center, point_a, point_b, height, radius)

Create a PyVista cylinder whose direction is defined by two points.

Parameters:

centerarray-like

Cylinder center [x, y, z].

point_aarray-like

First point defining the direction.

point_barray-like

Second point defining the direction.

heightfloat

Cylinder height.

radiusfloat

Cylinder radius.

Returns:

pyvista.PolyData

Cylinder mesh.

pymycar.Cad.geometric_forms.dashed_line(point_a, point_b, n_dashes=100)

Create a dashed 3D line between two points using line segments.

pymycar.Cad.geometric_forms.dashed_tube(point_a, point_b, radius=5, n_dashes=10, duty_cycle=0.5)

Create a dashed tube between two points using multiple short tube segments.

Parameters:

point_aarray-like

point_barray-like

radiusfloat

n_dashesint

Number of visible dash segments.

duty_cyclefloat

Fraction of each dash period that is “on”.

pymycar.Cad.geometric_forms.rectangle_U(base_a, base_b, point_a, point_b, radius=10, resolution=100, n_sides=10)

Generate a U-shaped rectangular control arm using three tubes.

Parameters:

base_aarray-like

Coordinates of the first base point of the control arm.

base_barray-like

Coordinates of the second base point of the control arm.

point_aarray-like

Coordinates of the extended point connecting to base_a.

point_barray-like

Coordinates of the extended point connecting to base_b.

radiusfloat, optional

Radius of the tubes, by default 10.

resolutionint, optional

Resolution of the tubes, by default 100.

n_sidesint, optional

Number of sides of the tubes, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing three tubes representing the U-shaped control arm.

Notes

The control arm is formed by two tubes connecting the base points to their respective extended points, and a third tube connecting the two extended points. This forms a U-shaped rectangular structure.

pymycar.Cad.geometric_forms.rocked(pivot, point_a, point_b)

Generate a structure with tubes connecting various points.

Parameters:

pivotarray-like

Coordinates of the central pivot point.

point_aarray-like

Coordinates of the first connecting point.

point_barray-like

Coordinates of the second connecting point.

Returns:

pv.MultiBlock

MultiBlock containing three Tubes representing the structure.

Notes

The structure is formed by three Tubes connecting various points.

pymycar.Cad.geometric_forms.simple_cylinder(center, height, radius)

Generate a simple cylinder.

Parameters:

centerarray-like

Coordinates of the center of the cylinder.

heightfloat

Height of the cylinder.

radiusfloat

Radius of the cylinder.

Returns:

pv.MultiBlock

MultiBlock containing a Cylinder representing the simple cylinder.

Notes

The simple cylinder is a Cylinder centered at the specified point with the given height and radius.

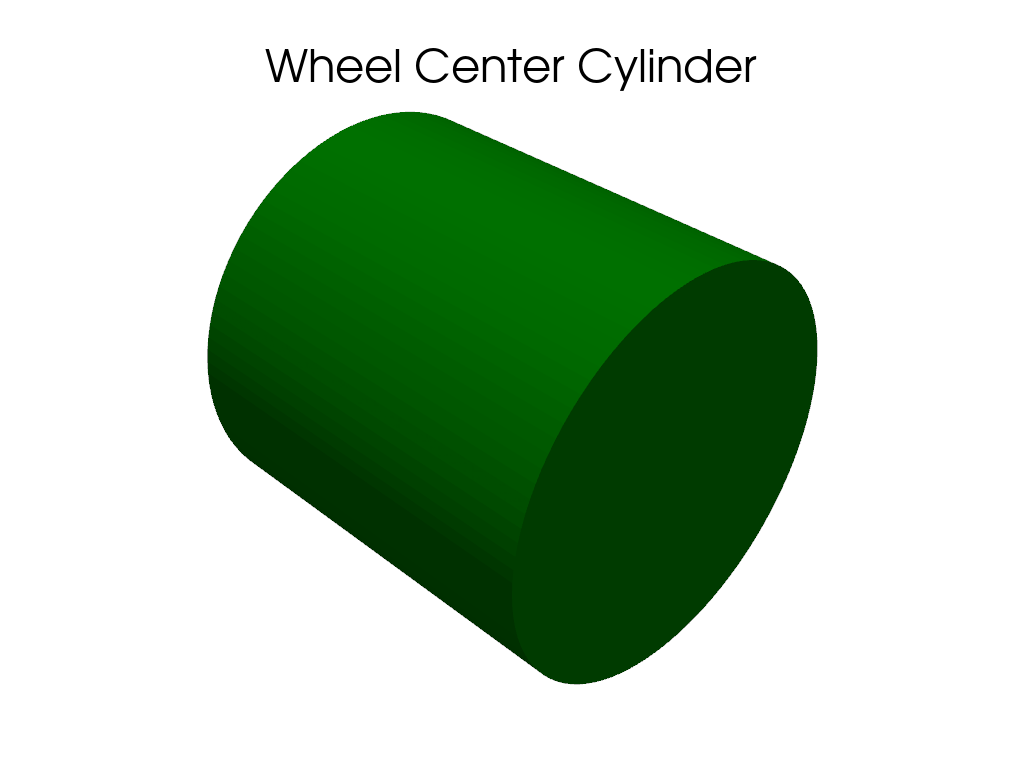

Examples

Create a cylinder at a specific coordinate and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad import simple_cylinder
>>> b = simple_cylinder(np.array([941.5, -580.2, 155.1]), height=10, radius=5)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(b, color='green', name="Wheel Center Cylinder")
>>> plotter.add_title("Wheel Center Cylinder")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.simple_sphere(center, radius)

Generate a simple sphere.

Parameters:

centerarray-like

Coordinates of the center of the sphere.

radiusfloat

Radius of the sphere.

Returns:

pv.MultiBlock

MultiBlock containing a Sphere representing the simple sphere.

Notes

The simple sphere is a Sphere centered at the specified point with the given radius.

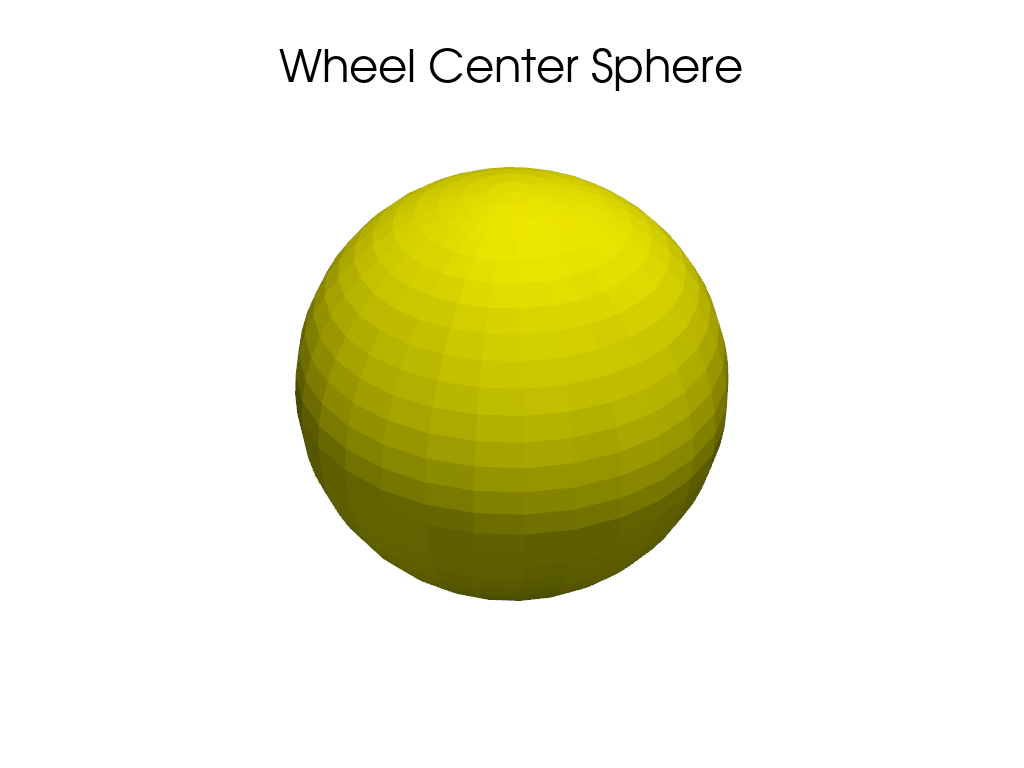

Examples

Create a sphere at a specific coordinate and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad import simple_sphere
>>> c = simple_sphere(np.array([941.5, -580.2, 155.1]), radius=10)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(c, color='yellow', name="Wheel Center Sphere")
>>> plotter.add_title("Wheel Center Sphere")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.simple_spring(point_a, point_b, radius=5, n_coils=10, spring_radius=15, n_points=500)

Generate a spring with a defined number of coils spiraling around a line.

Parameters:

point_aarray-like

Coordinates of the upper mounting point of the spring.

point_barray-like

Coordinates of the lower mounting point of the spring.

radiusfloat, optional

Radius of the wire Tube and mounting Spheres, by default 5.

n_coilsint, optional

Number of complete spiral coils, by default 10.

spring_radiusfloat, optional

The radius of the spiral itself, by default 15.

n_pointsint, optional

The resolution (number of points) used to draw the spiral, by default 500.

Returns:

pv.MultiBlock

MultiBlock containing two Spheres and a spiral Tube representing the spring.

Notes

The spring is formed by two Spheres at the upper and lower mounting points and a spiral Tube generated as a parametric spline connecting them.

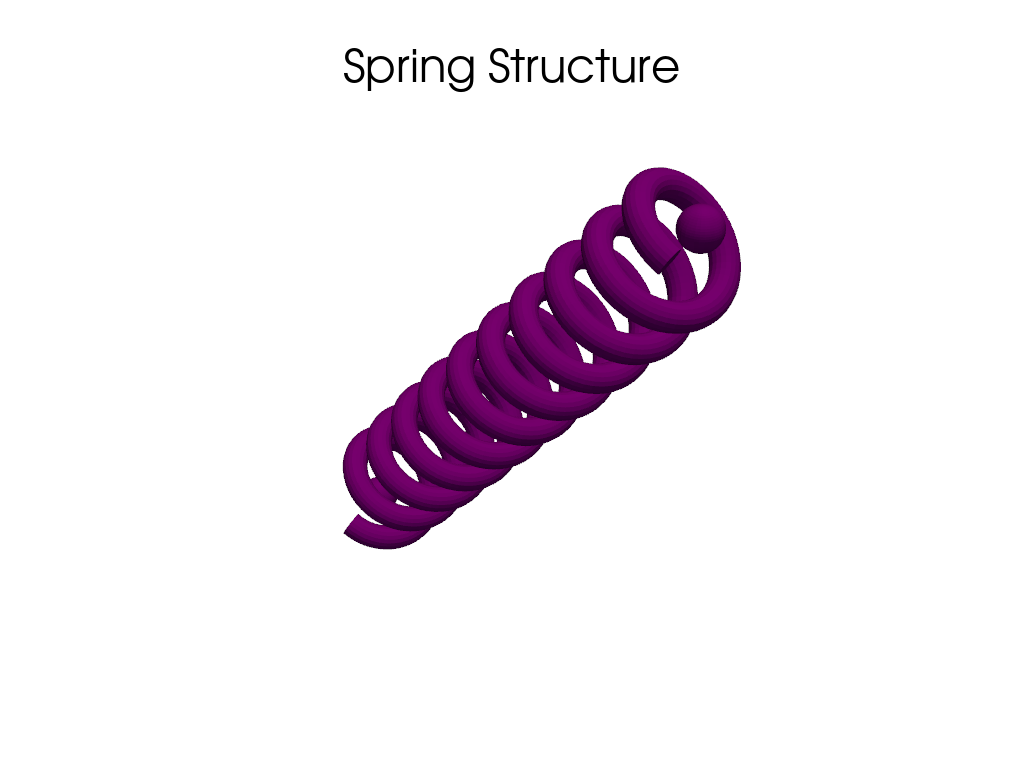

Examples

Create a spring structure mapping between two coordinates and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad.geometric_forms import simple_spring
>>> d = simple_spring(np.array([831.7, -278.7, 251.2]), np.array([849.2, -419.1, 76.4]), radius=5, n_coils=10, spring_radius=20)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(d, color='purple', name="Spring")
>>> plotter.add_title("Spring Structure")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.simple_tube(point_a, point_b, radius=5, resolution=100, n_sides=10)

Generate a simple tube.

Parameters:

point_aarray-like

Coordinates of the first point of the tube.

point_barray-like

Coordinates of the second point of the tube.

radiusfloat, optional

Radius of the Tube, by default 5.

resolutionint, optional

Resolution of the Tube, by default 100.

n_sidesint, optional

Number of sides of the Tube, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing a Tube representing the simple tube.

Notes

The simple tube is formed by a single Tube connecting point_a and point_b.

Examples

Create a tube between two coordinates and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad import simple_tube
>>> tube = simple_tube(np.array([934.2, -192.1, 81.2]), np.array([1027.1, -513.7, 43.6]), radius=10, resolution=100, n_sides=10)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(tube, color='blue', name="Tie Rod Tube")
>>> plotter.add_title("Tie Rod Tube")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.spring(point_a, point_b, radius=5)

Generate a spring.

Parameters:

point_aarray-like

Coordinates of the upper mounting point of the spring.

point_barray-like

Coordinates of the lower mounting point of the spring.

radiusfloat, optional

Radius of the Spheres and the Tube, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing two Spheres and a Tube representing the spring.

Notes

The spring is formed by two Spheres at the upper and lower mounting points and a Tube connecting them.

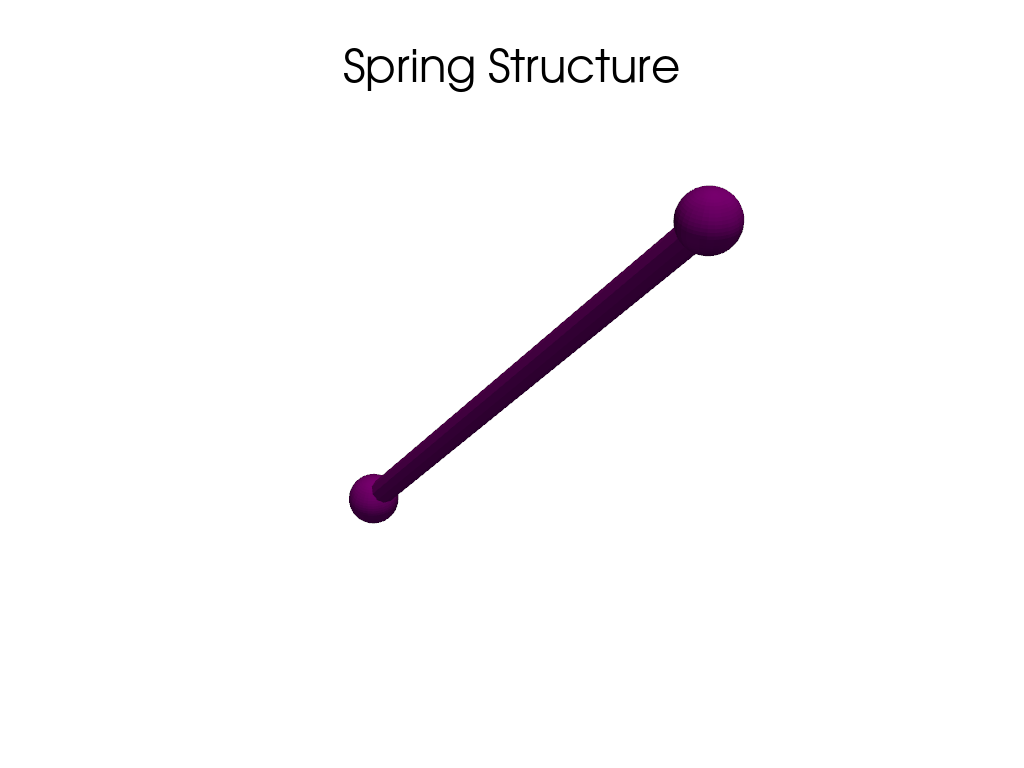

Examples

Create a spring structure mapping between two coordinates and show it using PyVista.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad import spring
>>> d = spring(np.array([831.7, -278.7, 251.2]), np.array([849.2, -419.1, 76.4]), radius=10)
>>> plotter = pv.Plotter()
>>> plotter.add_mesh(d, color='purple', name="Spring")
>>> plotter.add_title("Spring Structure")
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.geometric_forms.spring_old(point_a, point_b, radius=10, coil_radius=10, n_coils=1, n_points=1000)

Generate a spring.

Parameters:

point_aarray-like

Coordinates of the upper mounting point of the spring.

point_barray-like

Coordinates of the lower mounting point of the spring.

radiusfloat, optional

Radius of the Spheres, by default 10.

coil_radiusfloat, optional

Radius of the spring coil, by default 5.

n_coilsint, optional

Number of coils in the spring, by default 10.

n_pointsint, optional

Number of points to represent the spring coil, by default 100.

Returns:

pv.MultiBlock

MultiBlock containing two Spheres and a Helix representing the spring.

Notes

The spring is formed by two Spheres at the upper and lower mounting points and a Helix representing the spring coil.

Car

Formula

pymycar.Cad.Car.frame.formula(front_axle_to_com=1500, rear_axle_to_com=822.5, front_track=750.0, rear_track=822.5, com_height=400.0, roll=0, pitch=0, yaw=0, x=0, y=0, z=0) → MultiBlock

Generate a 3D model of a Formula vehicle chassis.

#                                                 ---
#---------------------------                      | |
#                            |                      | |
#                            ------------          | |
#                                        |          | |
#-----------   CoG               A      ----B-----|C|
#            |    *                *          *     |*|
#-----------                            ----------| |
#                                        |          | |
#                            ------------          | |
#                            |                      | |
#---------------------------                      | |
#                                                 ---

Parameters:

front_axle_to_comfloat, optional

Distance from the front axle to the center of mass (CoM).

rear_axle_to_comfloat, optional

Distance from the rear axle to the center of mass (CoM).

front_trackfloat, optional

Front track width.

rear_trackfloat, optional

Rear track width.

com_heightfloat, optional

Height of the center of mass (CoM).

rollfloat, optional

Roll angle in radians.

pitchfloat, optional

Pitch angle in radians.

yawfloat, optional

Yaw angle in radians.

xfloat, optional

X-coordinate of the center of mass (CoM).

yfloat, optional

Y-coordinate of the center of mass (CoM).

zfloat, optional

Z-coordinate of the center of mass (CoM).

Returns:

pv.MultiBlock

MultiBlock containing the chassis components.

Notes

The model consists of multiple boxes representing different parts of the vehicle chassis.

pymycar.Cad.Car.frame.model_B(front_axle_to_com=1500, rear_axle_to_com=822.5, front_track=750.0, rear_track=822.5, com_height=400.0, roll=0, pitch=0, yaw=0, x=0, y=0, z=0) → MultiBlock

Generate a 3D model of a different Formula vehicle chassis.

Parameters:

front_axle_to_comfloat, optional

Distance from the front axle to the center of mass (CoM).

rear_axle_to_comfloat, optional

Distance from the rear axle to the center of mass (CoM).

front_trackfloat, optional

Front track width.

rear_trackfloat, optional

Rear track width.

com_heightfloat, optional

Height of the center of mass (CoM).

rollfloat, optional

Roll angle in radians.

pitchfloat, optional

Pitch angle in radians.

yawfloat, optional

Yaw angle in radians.

xfloat, optional

X-coordinate of the center of mass (CoM).

yfloat, optional

Y-coordinate of the center of mass (CoM).

zfloat, optional

Z-coordinate of the center of mass (CoM).

Returns:

pv.MultiBlock

MultiBlock containing the chassis components.

Notes

The model consists of multiple boxes representing different parts of the vehicle chassis.

pymycar.Cad.Car.frame.model_C(front_axle_to_com=822.5, rear_axle_to_com=822.5, front_track=822.5, rear_track=822.5, com_height=600.0, roll=0, pitch=0, yaw=0, x=0, y=0, z=0) → MultiBlock

Generate a 3D model of a vehicle chassis.

#                 <---------- d2 --------->
#
#                   -------------------------
#                   |                       |
#          h2       |          *p1          |
#                   |                       |
#     ---------------                       |
# h1 |                 cog                  |
#    |                  * (x,y,z)           |
#    |                                      |
#    ---------------------------------------
#    <------------------ d1 --------------->
#

Parameters:

front_axle_to_comfloat, optional

Distance from the front axle to the center of mass (CoM).

rear_axle_to_comfloat, optional

Distance from the rear axle to the center of mass (CoM).

front_trackfloat, optional

Front track width.

rear_trackfloat, optional

Rear track width.

com_heightfloat, optional

Height of the center of mass (CoM).

rollfloat, optional

Roll angle in radians.

pitchfloat, optional

Pitch angle in radians.

yawfloat, optional

Yaw angle in radians.

xfloat, optional

X-coordinate of the center of mass (CoM).

yfloat, optional

Y-coordinate of the center of mass (CoM).

zfloat, optional

Z-coordinate of the center of mass (CoM).

Returns:

pv.MultiBlock

MultiBlock containing the chassis, cabin, and rear wheel.

Notes

The model consists of a chassis, a cabin, and a rear wheel, all represented as 3D geometric shapes.

Double Wishbone Visualization

This module provides utilities for visualizing a double wishbone suspension system using PyVista. It includes functions to construct the CAD representation of the system components such as control arms, wheel, springs, and other suspension parts.

pymycar.Cad.Car.double_whisbone.whisbone_cad_base(data, index=None)

Generates the base components of the suspension system.

#
#                    \\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    /
#    |       |    /
#    |       |   *----------*UCA_FRONT
#    |       | uca_outer   /⁻\.
#    |       |             ///
#    |       |
#    |   wheel_center
#  *-.-.-*   |        tierod_outer
# wheel_center_axis    *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer
#    |       |      *------------*LCA_REAR
#   -----------     \           /⁻\.
#                    \          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Name	Description
UCA_FRONT	upper control arm front
UCA_REAR	upper control arm rear
LCA_FRONT	lower control arm front
LCA_REAR	lower control arm rear
TIEROD_INNER	tierod inner
uca_outer	upper control arm outer
lca_outer	lower control arm outer
tierod_outer	tierod outer
wheel_center	center of the wheel
wheel_center_axis	axis of the wheel

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center : pyvista.PolyData

Examples

Create a base double wishbone suspension visualization.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad.Car.double_whisbone import whisbone_cad_base

Define the suspension geometry points.

>>> data = {
...     "UCA_FRONT": np.array([586.7, -314.5, 199.9]),
...     "UCA_REAR": np.array([930.7, -230.2, 244.2]),
...     "LCA_FRONT": np.array([588.7, -384.2, 76.8]),
...     "LCA_REAR": np.array([938.2, -191.2, 62.7]),
...     "TIEROD_INNER": np.array([934.2, -192.1, 81.2]),
...     "uca_outer": [np.array([953.0, -474.2, 272.2])],
...     "lca_outer": [np.array([934.8, -514.7, 47.9])],
...     "tierod_outer": [np.array([1027.1, -513.7, 43.6])],
...     "wheel_center": [np.array([941.5, -580.2, 155.1])],
...     "wheel_center_axis": [np.array([941.5, -680.2, 155.1])]
... }

Generate the CAD elements and a representation of the wheel.

>>> upper_control_arm, lower_control_arm, direction, wheel_center, wheel_axis = whisbone_cad_base(data, 0)
>>> wheel = pv.Cylinder(center=data["wheel_center"][0], direction=(0, 1, 0), height=50, radius=200)

Initialize the plotter and add the generated meshes.

>>> plotter = pv.Plotter()
>>> plotter.add_mesh(upper_control_arm, color="blue")
>>> plotter.add_mesh(lower_control_arm, color="pink")
>>> plotter.add_mesh(direction, color="green")
>>> plotter.add_mesh(wheel, color="black", opacity=0.5)
>>> plotter.add_mesh(wheel_axis, color="gray", opacity=0.5)
>>> for name, coord in data.items():
...     pts = coord[0] if isinstance(coord, list) else coord
...     plotter.add_mesh(pv.Sphere(radius=5, center=pts), color='red')
...     plotter.add_point_labels([pts], [name], point_size=20, font_size=30, text_color='black', always_visible=True)
>>> plotter.show()

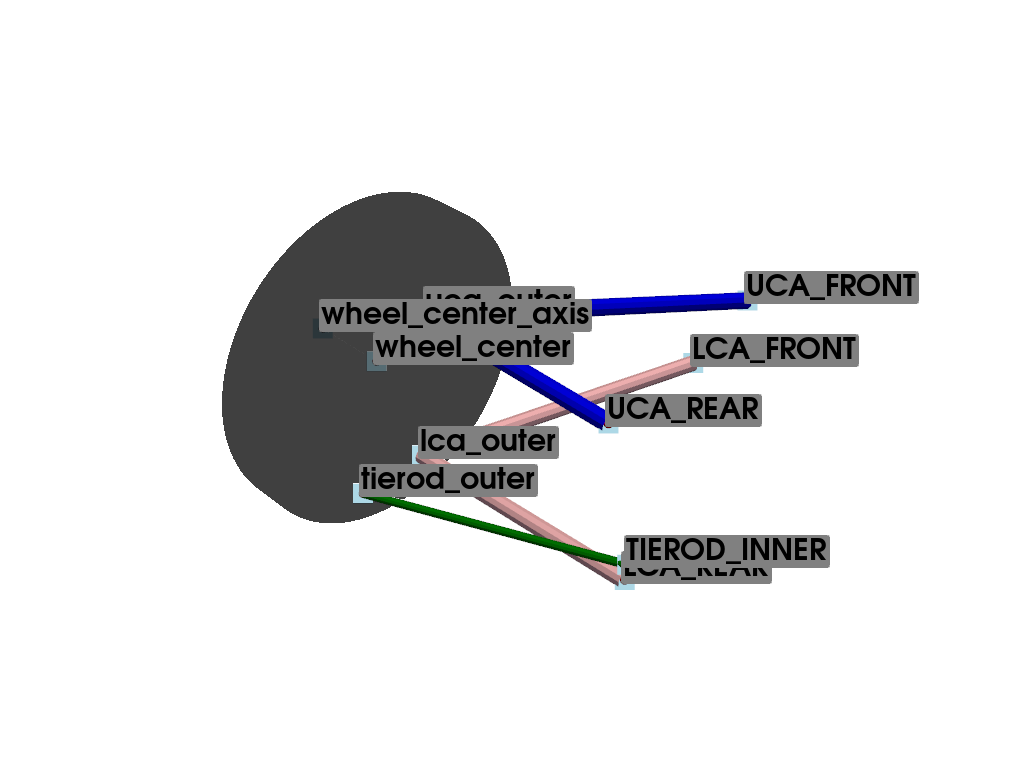

Static Scene

Interactive Scene

pymycar.Cad.Car.double_whisbone.whisbone_cad_configuration_1(data, index=None)

Creates a suspension system configuration with a spring.

#
#                    \\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    /
#    |       |    /
#    |       |   *----------*UCA_FRONT
#    |       | uca_outer   /⁻\.
#    |       |             ///
#    |       |
#    |       |
#    |       |        tierod_outer
#    |       |       *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer
#    |       |      *------------*LCA_REAR
#   -----------     \           /⁻\.
#                    \          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Name	Description
UCA_FRONT	upper control arm front
UCA_REAR	upper control arm rear
LCA_FRONT	lower control arm front
LCA_REAR	lower control arm rear
TIEROD_INNER	tierod inner
uca_outer	upper control arm outer
lca_outer	lower control arm outer
tierod_outer	tierod outer
U_SPRING_MOUNT	upper spring mount
l_spring_mount	lower spring mount

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center : pyvista.PolyData - spring_o : pyvista.PolyData

Examples

Create a base double wishbone suspension with a spring visualization.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad.Car.double_whisbone import whisbone_cad_configuration_1

Define the suspension geometry points.

>>> data = {
...     "UCA_FRONT": np.array([586.7, -314.5, 199.9]),
...     "UCA_REAR": np.array([930.7, -230.2, 244.2]),
...     "LCA_FRONT": np.array([588.7, -384.2, 76.8]),
...     "LCA_REAR": np.array([938.2, -191.2, 62.7]),
...     "TIEROD_INNER": np.array([934.2, -192.1, 81.2]),
...     "uca_outer": [np.array([953.0, -474.2, 272.2])],
...     "lca_outer": [np.array([934.8, -514.7, 47.9])],
...     "tierod_outer": [np.array([1027.1, -513.7, 43.6])],
...     "wheel_center": [np.array([941.5, -580.2, 155.1])],
...     "wheel_center_axis": [np.array([941.5, -680.2, 155.1])],
...     "U_SPRING_MOUNT": np.array([831.7, -278.7, 251.2]),
...     "l_spring_mount": [np.array([849.2, -419.1, 76.4])]
... }

Generate the CAD elements and a representation of the wheel.

>>> upper_control_arm, lower_control_arm, direction, wheel_center, wheel_axis, spring_o = whisbone_cad_configuration_1(data, 0)
>>> wheel = pv.Cylinder(center=data["wheel_center"][0], direction=(0, 1, 0), height=50, radius=200)

Initialize the plotter and add the generated meshes.

>>> plotter = pv.Plotter()
>>> plotter.add_mesh(upper_control_arm, color="blue")
>>> plotter.add_mesh(lower_control_arm, color="pink")
>>> plotter.add_mesh(direction, color="green")
>>> plotter.add_mesh(wheel_center, color="black")
>>> plotter.add_mesh(wheel_axis, color="gray", opacity=0.5)
>>> plotter.add_mesh(spring_o, color="red")
>>> plotter.add_mesh(wheel, color="black", opacity=0.5)
>>> for name, coord in data.items():
...     pts = coord[0] if isinstance(coord, list) else coord
...     plotter.add_mesh(pv.Sphere(radius=5, center=pts), color='red')
...     plotter.add_point_labels([pts], [name], point_size=20, font_size=30, text_color='black', always_visible=True)
>>> plotter.show()

Static Scene

Interactive Scene

pymycar.Cad.Car.double_whisbone.whisbone_cad_configuration_2(data, index=None)

Creates a suspension system configuration with a rocker, push rod, and spring.

#
#                    \\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    /
#    |       |    /
#    |       |   *----------*UCA_FRONT
#    |       | uca_outer   /⁻\.
#    |       |             ///
#    |       |
#    |       |
#    |       |        tierod_outer
#    |       |       *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer
#    |       |      *------------*LCA_REAR
#   -----------     \           /⁻\.
#                    \          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Name	Description
UCA_FRONT	upper control arm front
UCA_REAR	upper control arm rear
LCA_FRONT	lower control arm front
LCA_REAR	lower control arm rear
TIEROD_INNER	tierod inner
uca_outer	upper control arm outer
lca_outer	lower control arm outer
tierod_outer	tierod outer
ROCKED_PIVOT	rocked pivot
ROCKED_PIVOT_AXIS	rocked pivot axis
U_SPRING_MOUNT	upper spring mount
push_rod_outer	push rod outer
push_rod_inner	push rod inner
l_spring_mount	lower spring mount

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center : pyvista.PolyData - spring_o : pyvista.PolyData - push_rod : pyvista.PolyData - rocked_o : pyvista.PolyData

Examples

Create a base double wishbone suspension with a rocker, push rod, and spring visualization.

>>> import numpy as np
>>> import pyvista as pv
>>> from pymycar.Cad.Car.double_whisbone import whisbone_cad_configuration_2

Define the suspension geometry points.

>>> data = {
...     "UCA_FRONT": np.array([586.7, -314.5, 199.9]),
...     "UCA_REAR":  np.array([930.7, -230.2, 244.2]),
...     "LCA_FRONT": np.array([588.7, -384.2, 76.8]),
...     "LCA_REAR": np.array([938.2, -191.2, 62.7]),
...     "TIEROD_INNER": np.array([934.2,  -192.1,  81.2]),
...     "ROCKED_PIVOT": np.array([901.0, -139.00, 399.0]),
...     "ROCKED_PIVOT_AXIS": np.array([941.0, -139.00, 399.0]),
...     "U_SPRING_MOUNT": np.array([901.0,  -29.50, 499.0]),
...     "uca_outer": [np.array([953.0, -474.2, 272.2])],
...     "lca_outer": [np.array([934.8, -514.7, 47.9])],
...     "tierod_outer": [np.array([1027.1, -513.7, 43.6])],
...     "wheel_center": [np.array([941.5, -580.2, 155.1])],
...     "wheel_center_axis": [np.array([941.5, -680.2, 155.1])],
...     "push_rod_outer": [np.array([901.0, -379.00, 250.0])],
...     "push_rod_inner": [np.array([901.0, -139.00, 441.0])],
...     "l_spring_mount": [np.array([901.0, -130.20, 451.0])]
... }

Generate the CAD elements and a representation of the wheel.

>>> upper_control_arm, lower_control_arm, direction, wheel_center, wheel_axis, spring_o, push_rod, rocked_o = whisbone_cad_configuration_2(data, 0)
>>> wheel = pv.Cylinder(center=data["wheel_center"][0], direction=(0, 1, 0), height=50, radius=200)

Initialize the plotter and add the generated meshes.

>>> plotter = pv.Plotter()
>>> plotter.add_mesh(upper_control_arm, color="blue")
>>> plotter.add_mesh(lower_control_arm, color="pink")
>>> plotter.add_mesh(direction, color="green")
>>> plotter.add_mesh(wheel_center, color="black")
>>> plotter.add_mesh(wheel_axis, color="gray", opacity=0.5)
>>> plotter.add_mesh(spring_o, color="red")
>>> plotter.add_mesh(push_rod, color="black")
>>> plotter.add_mesh(rocked_o, color="yellow")
>>> plotter.add_mesh(wheel, color="black", opacity=0.5)
>>> for name, coord in data.items():
...     pts = coord[0] if isinstance(coord, list) else coord
...     plotter.add_mesh(pv.Sphere(radius=5, center=pts), color='red')
...     plotter.add_point_labels([pts], [name], point_size=20, font_size=30, text_color='black', always_visible=True)
>>> plotter.show()

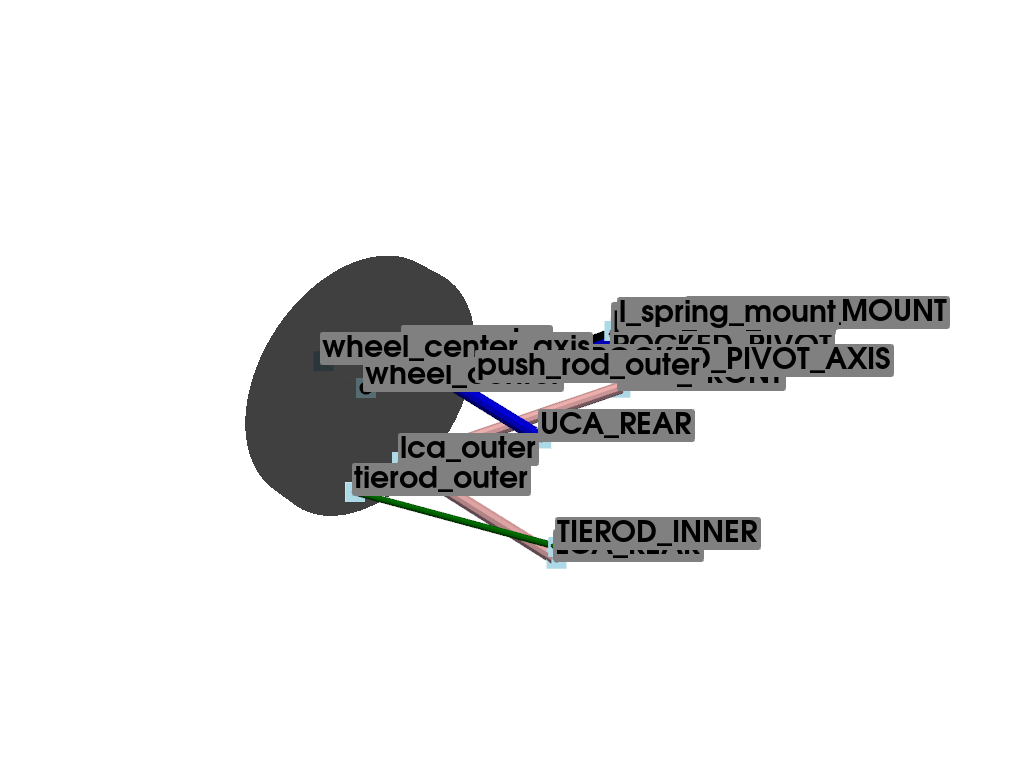

Static Scene

Interactive Scene

Multilink Visualization

This module provides utilities for visualizing a double wishbone suspension system using PyVista. It includes functions to construct the CAD representation of the system components such as control arms, wheel, springs, and other suspension parts.

pymycar.Cad.Car.multilink.multilink_cad_base(data, index=None)

Generates the base components of the suspension system.

#
#                    \\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    * uca_outer
#    |       |
#    |       |   *-------------*UCA_FRONT
#    |       | uca_outer      /⁻\
#    |       |                ///
#    |       |
#    |       |
#    |       |        tierod_outer
#    |       |       *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer_aux
#    |       |      *------------*LCA_REAR
#   -----------                 /⁻\.
#          lca_outer *          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Points Name	Description	Type
wheel center	Center of the Wheel	mobile
UCA FRONT	Upper Control Arm Front	fixed
UCA REAR	Upper Control Arm Rear	fixed
uca outer	Upper Control Arm Outer	mobile
LCA FRONT	Lower Control Arm Front	fixed
LCA REAR	Lower Control Arm Rear	fixed
lca outer	Lower Control Arm Outer	mobile
TIEROD INNER	Inner Tie Rod	fixed
tierod outer	Outer Tie Rod	mobile
uca outer aux	Upper Control Arm Outer aux	mobile
lca outer aux	Lower Control Arm Outer aux	mobile

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center : pyvista.PolyData

pymycar.Cad.Car.multilink.multilink_cad_configuration_1(data, index=None)

Generates the base components of the suspension system.

#
#                    \\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    * uca_outer
#    |       |
#    |       |   *-------------*UCA_FRONT
#    |       | uca_outer      /⁻\
#    |       |                ///
#    |       | l_spring_mount
#    |       |*---------------------------*U_SPRING_MOUNT
#    |       |        tierod_outer
#    |       |       *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer_aux
#    |       |      *------------*LCA_REAR
#   -----------                 /⁻\.
#          lca_outer *          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Points Name	Description	Type
wheel center	Center of the Wheel	mobile
UCA FRONT	Upper Control Arm Front	fixed
UCA REAR	Upper Control Arm Rear	fixed
uca outer	Upper Control Arm Outer	mobile
LCA FRONT	Lower Control Arm Front	fixed
LCA REAR	Lower Control Arm Rear	fixed
lca outer	Lower Control Arm Outer	mobile
TIEROD INNER	Inner Tie Rod	fixed
tierod outer	Outer Tie Rod	mobile
uca outer aux	Upper Control Arm Outer aux	mobile
lca outer aux	Lower Control Arm Outer aux	mobile
U SPRING MOUNT	Upper Spring Mount	fixed
l spring mount	Lower Spring Mount	mobile

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center : pyvista.PolyData

Motorcycle

Motorbike Chassis Visualization

pymycar.Cad.MotorCycle.frame.frame_cad_base(data, index=None)

Generate a control arm.

Parameters:

uca_frontarray-like

Coordinates of the front point of the control arm.

uca_reararray-like

Coordinates of the rear point of the control arm.

uca_outer_iarray-like

Coordinates of the outer point of the control arm.

radiusfloat, optional

Radius of the Tubes, by default 10.

resolutionint, optional

Resolution of the Tubes, by default 100.

n_sidesint, optional

Number of sides of the Tubes, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing two Tubes representing the control arm.

Notes

The control arm is formed by two Tubes connecting the front and rear points to the outer point.

Motorbike Front Assembly Visualization

pymycar.Cad.MotorCycle.front_assembly.fork_front_suspension(data, index=None)

Creates the CAD visualization for a front fork suspension.

#
#
#    fork_left_upper *
#                    |    * STEERING_AXIS_TOP
#                    |     \
#                    |      * STEERING_AXIS_BOTTOM
#                    |
#                    |         * fork_right_upper
#                    |         |
#   fork_left_middle *         |
#                    |         |
#                    |         |
#                    |         |
#  fork_left_bottom  *         * fork_right_middle
#                      \       |
#                       \      |
#     wheel_center_front *     |
#                          \   |
#                            \ |
#                              *fork_right_bottom
#
#
#

Points Name	Description	Type
wheel_center_front	Center of the Wheel	mobile
STEERING_AXIS_TOP	Steering axis top point	fixed
STEERING_AXIS_BOTTOM	Steering axis bottom point	fixed
fork_right_upper	Fork right upper attachment	mobile
fork_left_upper	Fork left upper attachment	mobile
fork_right_middle	Fork right middle attachment	mobile
fork_left_middle	Fork left middle attachment	mobile
fork_right_bottom	Fork right bottom attachment	mobile
fork_left_bottom	Fork left bottom attachment	mobile

Parameters:

datadict

Dictionary containing suspension geometry data points.

indexint, optional

Index of the current data point in the data arrays. Default is None.

Returns:

tuple

A tuple containing the following PyVista PolyData/MultiBlock objects: - bar_right_top : pyvista.PolyData - bar_left_top : pyvista.PolyData - U_form : pyvista.MultiBlock - steer_axis : pyvista.PolyData

Examples

pymycar.Cad.MotorCycle.front_assembly.fork_front_suspension_steer(data, index=None)

Creates the CAD visualization for a front fork suspension.

#
#
#    fork_left_upper *
#                    |    * STEERING_AXIS_TOP
#                    |     \
#                    |      * STEERING_AXIS_BOTTOM
#                    |
#                    |         * fork_right_upper
#                    |         |
#   fork_left_middle *         |
#                    |         |
#                    |         |
#                    |         |
#  fork_left_bottom  *         * fork_right_middle
#                      \       |
#                       \      |
#     wheel_center_front *     |
#                          \   |
#                            \ |
#                              *fork_right_bottom
#
#
#

Points Name	Description	Type
wheel_center_front	Center of the Wheel	mobile
STEERING_AXIS_TOP	Steering axis top point	fixed
STEERING_AXIS_BOTTOM	Steering axis bottom point	fixed
fork_right_upper	Fork right upper attachment	mobile
fork_left_upper	Fork left upper attachment	mobile
fork_right_middle	Fork right middle attachment	mobile
fork_left_middle	Fork left middle attachment	mobile
fork_right_bottom	Fork right bottom attachment	mobile
fork_left_bottom	Fork left bottom attachment	mobile

Parameters:

datadict

Dictionary containing suspension geometry data points.

indexint, optional

Index of the current data point in the data arrays. Default is None.

Returns:

tuple

A tuple containing the following PyVista PolyData/MultiBlock objects: - bar_right_top : pyvista.PolyData - bar_left_top : pyvista.PolyData - U_form : pyvista.MultiBlock - steer_axis : pyvista.PolyData

Examples

Motorbike Rear Assembly Visualization

pymycar.Cad.MotorCycle.rear_assembly.rear_suspension_cantilever(data, index=None)

Creates a suspension system configuration with a spring.

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center_rear : pyvista.PolyData - spring_o : pyvista.PolyData

pymycar.Cad.MotorCycle.rear_assembly.rear_suspension_new(data, index=None)

Creates a suspension system configuration with a spring.

Parameters:

datadict

Dictionary containing suspension geometry data.

indexint

Index of the current data point.

Returns:

tuple

A tuple containing: - upper_control_arm : pyvista.PolyData - lower_control_arm : pyvista.PolyData - direction : pyvista.PolyData - wheel_center_rear : pyvista.PolyData - spring_o : pyvista.PolyData

pymycar.Cad.MotorCycle.rear_assembly.swingarm_cad_base(data, index=None)

Generate a control arm.

Parameters:

uca_frontarray-like

Coordinates of the front point of the control arm.

uca_reararray-like

Coordinates of the rear point of the control arm.

uca_outer_iarray-like

Coordinates of the outer point of the control arm.

radiusfloat, optional

Radius of the Tubes, by default 10.

resolutionint, optional

Resolution of the Tubes, by default 100.

n_sidesint, optional

Number of sides of the Tubes, by default 10.

Returns:

pv.MultiBlock

MultiBlock containing two Tubes representing the control arm.

Notes

The control arm is formed by two Tubes connecting the front and rear points to the outer point.
