Double Whisbonebase

#
#                    \\\
#                    \-/
#             UCA_REAR*
#                    /
#                   /
#   -----------    /
#    |       |    /
#    |       |   *----------*UCA_FRONT
#    |       |             /⁻\.
#    |       |             ///
#    |       |
#    |       |
#    |       |        tierod_outer
#    |       |       *--------------------*TIEROD_INNER
#    |       |
#    |       |
#    |       |       lca_outer
#    |       |      *------------*LCA_REAR
#   -----------     \           /⁻\.
#                    \          ///
#                     \.
#                      *LCA_FRONT
#                     /⁻\.
#                     ///

Name	Description
UCA_FRONT	upper control arm front
UCA_REAR	upper control arm rear
LCA_FRONT	upper control arm front
LCA_REAR	LOWER control arm rear
TIEROD_INNER	tierod inner
uca_outer	upper control arm outer
lca_outer	lower upper control arm outer
tierod_outer	tierod outer

Import necessary libraries

import sys

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pyvista as pv

Import from pymycar package

from pymycar.SuspensionKinematic.multilink import multilink
from pymycar.SuspensionKinematic.functions import get_wheel
from pymycar.Cad.Wheel.wheel import wheel_cad

from pymycar.Cad.Wheel.wheel import wheel_cad
from pymycar.Cad.Suspension.multilink import multilink_cad_base

Parameters Definition

data = {
    "UCA_FRONT": np.array([4707.1, -462.7, 1120.5]),
    "UCA_REAR": np.array([4912.2, -418.5, 1128.2]),
    "LCA_FRONT": np.array([4066.2, -498.8, 1015.7]),
    "LCA_REAR": np.array([4682.3, -285.2, 936.4]),
    "TIEROD_INNER": np.array([5042.5, -272.4, 988.7]),
    "uca_outer": np.array([4701.2, -710.5, 1207.3]),
    "lca_outer": np.array([4687.4, -698.2, 927.5]),
    "tierod_outer": np.array([4942.9, -719.8, 1038.2]),
    "wheel_center": np.array([4682.2, -766.1, 1047.4]),
    "uca_outer_aux": np.array([4840.7, -721.2, 1202.8]),
    "lca_outer_aux": np.array([4702.5, -701.7, 1006.2]),
}

Call the Solver

solution, wheel_variables = multilink(data,
                     max_height_increase=100,
                     max_height_decrease=100,
                     height_step=1,
                     save_to_txt=True,
                     result_folder_name="multilink",
                     path=None)

All specified files deleted successfully.
All specified folders and their contents deleted successfully.
All specified folders and their contents deleted successfully.

Plot: “wheel_track vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["wheel_track"], 'k-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel track')
ax.set_ylabel('caster angle')
ax.set_title('Wheel Jounce - Wheel Track')

Text(0.5, 1.0, 'Wheel Jounce - Wheel Track')

Plot: “wheel_base” vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["wheel_base"], 'k-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('wheel base')
ax.set_title('Wheel Jounce - Wheel Base')

Text(0.5, 1.0, 'Wheel Jounce - Wheel Base')

Plot: “camber_angle” vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["camber_angle"],'r-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('camber angle')
ax.set_title('Wheel Jounce - Camber Angle')

Text(0.5, 1.0, 'Wheel Jounce - Camber Angle')

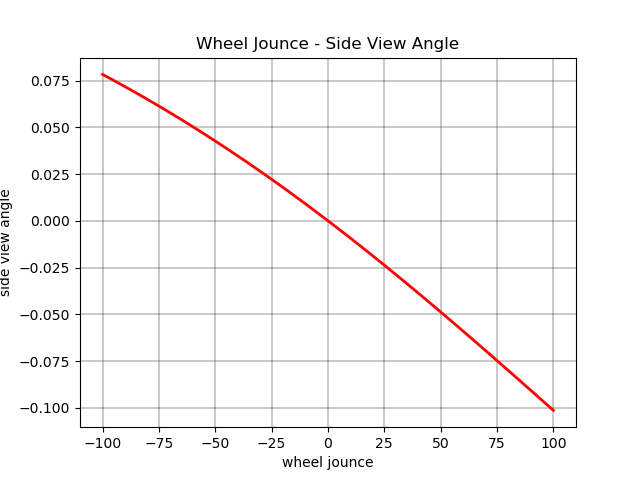

Plot: “camber_angle” vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["side_view_angle"],'r-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('side view angle')
ax.set_title('Wheel Jounce - Side View Angle')

Text(0.5, 1.0, 'Wheel Jounce - Side View Angle')

Plot: “camber_angle” vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["toe_angle"],'r-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('toe angle')
ax.set_title('Wheel Jounce - Toe Angle')

Text(0.5, 1.0, 'Wheel Jounce - Toe Angle')

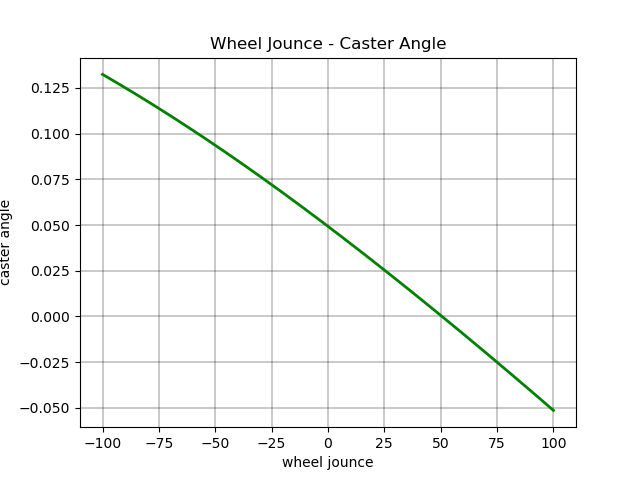

Plot: “caster_angle” vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot(wheel_variables["wheel_jounce"], wheel_variables["caster_angle"], 'g-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('caster angle')
ax.set_title('Wheel Jounce - Caster Angle')

Text(0.5, 1.0, 'Wheel Jounce - Caster Angle')

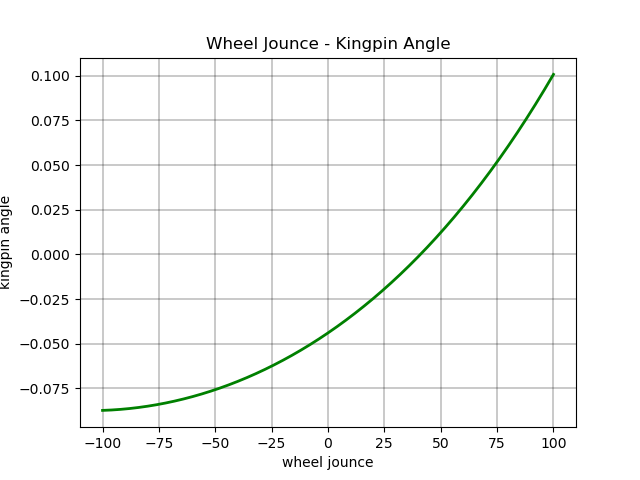

Plot: kingpin_angle vs “wheel_jounce”

fig, ax = plt.subplots()
ax.plot( wheel_variables["wheel_jounce"], wheel_variables["kingpin_angle"], 'g-', linewidth=2.0)
ax.grid(color='k', linestyle='-', linewidth=0.3)
ax.set_xlabel('wheel jounce')
ax.set_ylabel('kingpin angle')
ax.set_title('Wheel Jounce - Kingpin Angle')


plt.show()

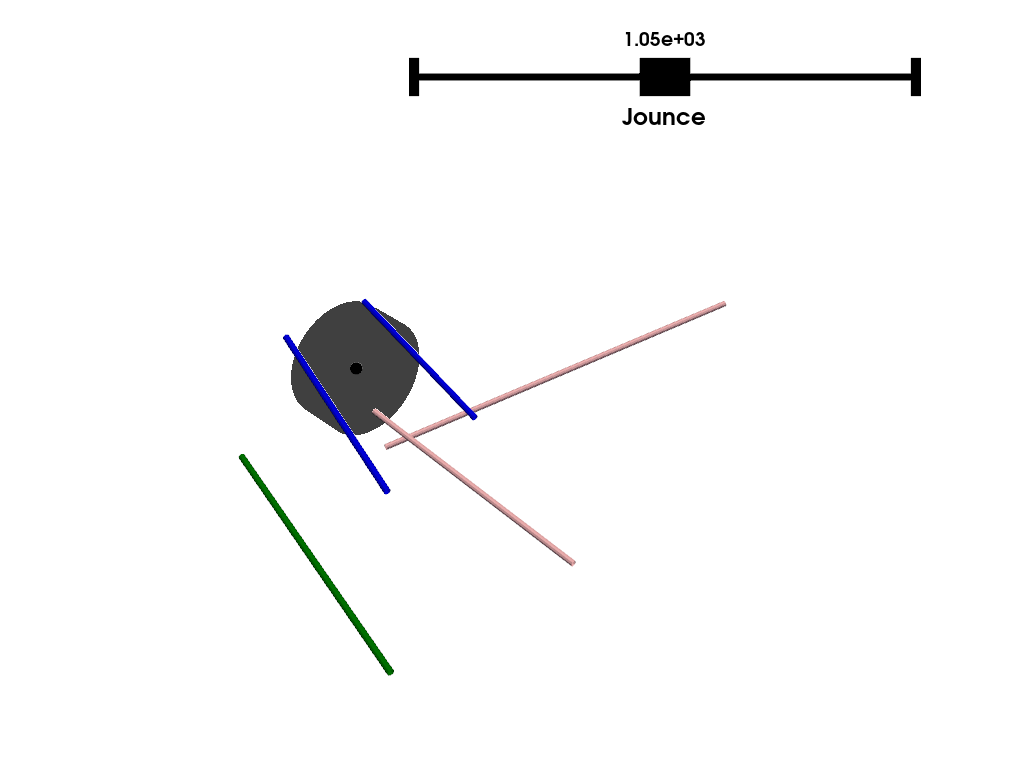

last_meshes = []
def plot_frame(plotter, data, index=None):
    global last_meshes

    if index is None:
        index = data["index_reference"]

    upper_control_arm, lower_control_arm, upper_control_arm_aux, lower_control_arm_aux, direction, wheel_center1 = multilink_cad_base(data,index)
    wheel = wheel_cad(data, wheel_variables, index)

    # Remove the last meshes
    for mesh in last_meshes:
        plotter.remove_actor(mesh)

    # Add new meshes
    last_meshes = [
        plotter.add_mesh(wheel_center1, color="black"),
        plotter.add_mesh(upper_control_arm, color="blue"),
        plotter.add_mesh(lower_control_arm, color="pink"),
        plotter.add_mesh(direction, color="green"),
        plotter.add_mesh(wheel, color="black", opacity=0.5),
        plotter.add_mesh(upper_control_arm_aux, color="blue"),
        plotter.add_mesh(lower_control_arm_aux, color="pink"),
    ]


plotter = pv.Plotter()
def create_mesh(value):
    res = np.abs(solution["wheel_center"][:,2] - value).argmin()
    plot_frame(plotter, solution, index=res)

plotter.add_slider_widget(create_mesh,
                          rng=[solution["wheel_center"][0, 2], solution["wheel_center"][-1, 2]],
                          value=solution["wheel_center"][solution["index_reference"]][2],
                          title='Jounce')
plotter.show()
